Neodymium | Descriptions, Properties, Neodymium Magnets, Uses

Neodymium | Neodymium Magnets

Unveiling the Wonders of Neodymium: From Elements to Magnets


Neodymium:

In the vast landscape of the periodic table, neodymium (Nd) stands out as a remarkable element with fascinating properties. From its chemical composition to the creation of powerful neodymium magnets, this blog will delve into the intricate details of neodymium, exploring its atomic structure, properties, compounds, uses, and the mesmerizing realm of neodymium magnets.

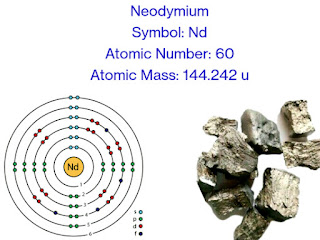

Neodymium Basics:

Symbol: Nd

Atomic Number: 60

Atomic Mass: 144.242 u

Electron Configuration: [Xe] 4f⁴ 6s²

Electron Configuration long form: 1s2 2s2 2p6 3s2 3p6 3d10 4s2 4p6 4d10 4f4 5s2 5p6 6s2

Valency: +3


Understanding Neodymium in Detail:

Neodymium, a rare earth metal, boasts a unique electron configuration in its long form, revealing the distribution of electrons in its various orbitals. Its magnetic properties stem from its unpaired electrons in the 4f orbital, contributing to its role in the creation of powerful magnets.


Chemical and Physical Properties:

Neodymium exhibits silvery-white, malleable, and ductile characteristics, placing it among the lanthanide series. Its magnetic susceptibility and high coercivity make it a crucial component in the development of neodymium magnets, renowned for their strength and versatility.


Neodymium Compounds:

Various neodymium compounds contribute to diverse applications. Neodymium oxide, for instance, is vital in the manufacturing of glass and ceramics, imparting distinctive colors. Neodymium compounds also find application in catalysts for certain chemical reactions, showcasing the element's versatility.


Chemical Reactions and Occurrence:

Neodymium engages in chemical reactions with oxygen and moisture, forming a protective oxide layer. It occurs naturally in minerals such as monazite and bastnäsite, often requiring intricate extraction processes due to its rarity in the Earth's crust.


Occurrence and Production:

Neodymium is primarily obtained from rare earth minerals, and the extraction process involves complex techniques to isolate this valuable element. China dominates global neodymium production, emphasizing its strategic significance in various industries.


Neodymium Magnets:

Neodymium magnets, also known as NdFeB or NIB magnets, are permanent magnets crafted from an alloy that combines neodymium, iron, and boron. This alloy crystallizes into the tetragonal structure Nd2Fe14B, forming magnets renowned for their strong and enduring magnetic properties. Neodymium magnets are known for their strong magnetic field, high coercivity, and high energy density.

There are several types of neodymium magnets based on their manufacturing process and intended applications. The main types include:

1. Sintered Neodymium Magnets:

N Grades:

These magnets are classified by the maximum energy product (BHmax) and are identified by the letter "N" followed by a number (e.g., N35, N42, N52). Higher numbers indicate stronger magnets with higher energy density.

Temperature Ratings:

Sintered neodymium magnets also have temperature ratings, such as 80°C, 100°C, or 120°C, indicating the maximum temperature at which the magnet can operate without significant loss of magnetic properties.

2. Bonded Neodymium Magnets:

These magnets are manufactured using a process where neodymium powder is mixed with a polymer matrix and then formed into the desired shape. While they are not as powerful as sintered magnets, bonded neodymium magnets can be manufactured with complex shapes and are less brittle.

3. Radially Oriented Ring Magnets:

These magnets are made using a special molding process that allows the magnetic field to be oriented in a radial direction. This provides specific magnetic characteristics suitable for certain applications.

4. Arc Magnets:

Arc magnets are shaped like a segment of a circle and are commonly used in motors, generators, and magnetic assemblies where a curved shape is required.

5. Magnetic Assemblies:

Neodymium magnets are often used in pre-assembled products where they are combined with other materials or magnets to achieve specific magnetic properties or shapes. This can include magnetic assemblies for various industrial and consumer applications.

It's important to note that neodymium magnets are vulnerable to corrosion, so they are often coated with nickel, zinc, or other protective layers to prevent degradation. Additionally, due to their strong magnetic fields, care must be taken when handling and storing neodymium magnets to avoid injury or damage.

Exploring Varieties:

Neodymium magnets come in diverse forms, including neodymium bar magnets, neodymium ring magnets, and N42 magnets, each tailored to specific needs and applications. Their strength, coupled with their small size, has opened up new possibilities in design and engineering.


Neodymium Magnets Uses and Facts:

The applications of neodymium extend far beyond its role in the periodic table. It is a vital component in lasers, lighting, and catalysts. However, one of its most notable applications is in the creation of neodymium magnets, which are integral in countless modern technologies.

N52 neodymium magnets, renowned for their exceptional strength, have revolutionized industries. Disc magnets, custom neodymium magnets, and ndfeb magnets (neodymium iron boron) are widely used in electronic devices, medical equipment, and renewable energy technologies. Their versatility and powerful magnetic fields make them indispensable in various applications.

Neodymium magnets are versatile and find applications across various industries due to their strong magnetic properties. Following are some common uses of neodymium magnets include:

1. Electronics:

Neodymium magnets are used in electronic devices such as headphones, microphones, and speakers to enhance audio quality and miniaturize components.

2. Magnetic Separators:

In industries like mining and recycling, neodymium magnets are employed in magnetic separators to efficiently separate and retrieve ferrous materials from non-ferrous substances.

3. Electric Motors and Generators:

Neodymium magnets are crucial components in electric motors and generators, contributing to their compact size, increased efficiency, and enhanced performance.

4. Medical Devices:

Magnetic resonance imaging (MRI) machines use neodymium magnets to generate strong magnetic fields for medical imaging purposes.

5. Wind Turbines:

Neodymium magnets are used in the generators of wind turbines to convert mechanical energy into electrical energy. Their strength allows for the production of more efficient and compact generators.

6. Automotive Applications:

Neodymium magnets are utilized in various automotive components, including electric vehicle motors, power steering systems, and sensors.

7. Hard Disk Drives (HDDs):

Neodymium magnets are found in the small motors of hard disk drives, where their strong magnetic fields facilitate precise and rapid data storage.

8. Magnetic Jewelry Clasps:

Neodymium magnets are employed in jewelry clasps for a secure and convenient closure, especially in items like bracelets and necklaces.

9. Door Catches and Latches:

Due to their small size and powerful magnetic pull, neodymium magnets are used in door catches and latches, providing a reliable and efficient means of securing doors.

10. Hobby and Craft Projects:

Neodymium magnets are popular in DIY projects, such as creating magnetic closures, attaching items to metal surfaces, or constructing magnetic sculptures.

11. Educational Demonstrations:

Neodymium magnets are used in educational settings to demonstrate principles of magnetism and conduct experiments, showcasing their magnetic properties.

It's essential to handle neodymium magnets with care due to their strong magnetic fields, and precautions should be taken to prevent injury or damage.


Conclusion:

From its humble place on the periodic table to the creation of powerful neodymium magnets, this blog has offered a comprehensive exploration of neodymium. Its unique properties, diverse applications, and magnetic wonders continue to shape industries and technologies, demonstrating the pivotal role this rare earth element plays in our modern world.
